What Is The Solar Controller?

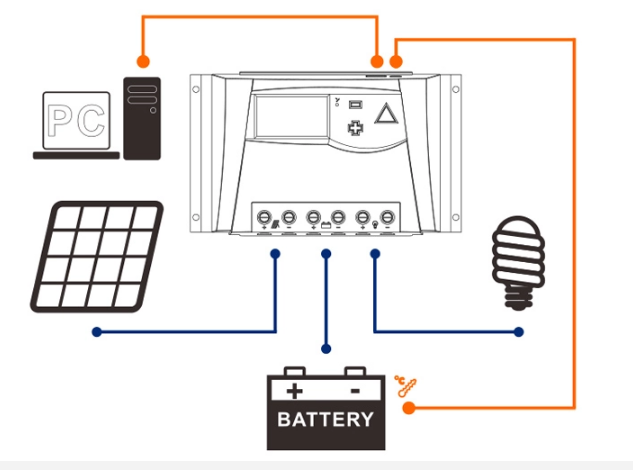

A solar controller, also known as a solar charge controller or solar regulator, is an essential component in a solar power system. It regulates the voltage and current coming from the solar panels to the battery, ensuring the battery is not overcharged and preventing it from discharging back to the solar panels during the night. Here’s an overview of the key functions and types of solar controllers:

Key Functions

Voltage Regulation: Ensures that the voltage from the solar panels does not exceed the maximum voltage that the battery can handle, protecting the battery from damage.

Current Regulation: Limits the amount of current flowing into the battery to prevent overcharging.

Load Control: Manages the power going to the load and can disconnect the load to prevent over-discharging of the battery.

Temperature Compensation: Adjusts the charging rate based on temperature to optimize battery charging and extend battery life.

Types of Solar Controllers:

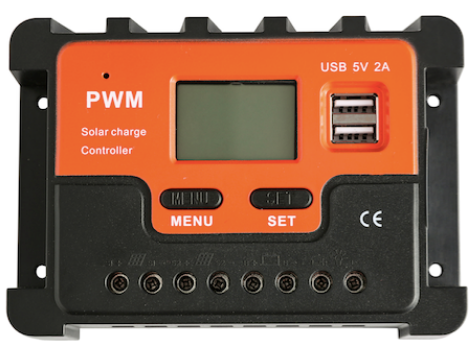

1. PWM (Pulse Width Modulation) Controllers:

Function: PWM controllers work by gradually reducing the amount of power applied to the battery as it gets closer to full charge.

Advantages: Simpler design, lower cost, suitable for smaller systems.

Disadvantages: Less efficient compared to MPPT controllers, especially in cold or cloudy conditions.

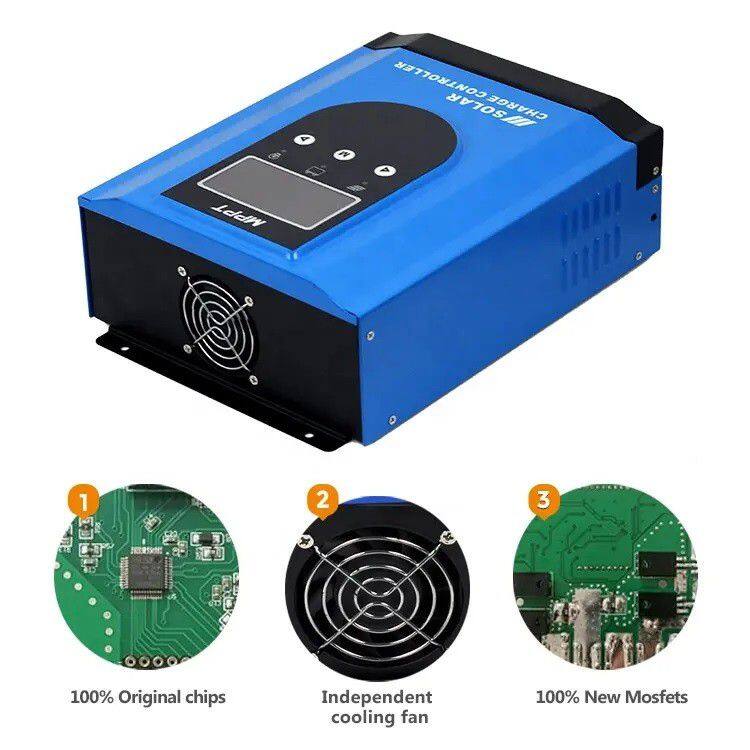

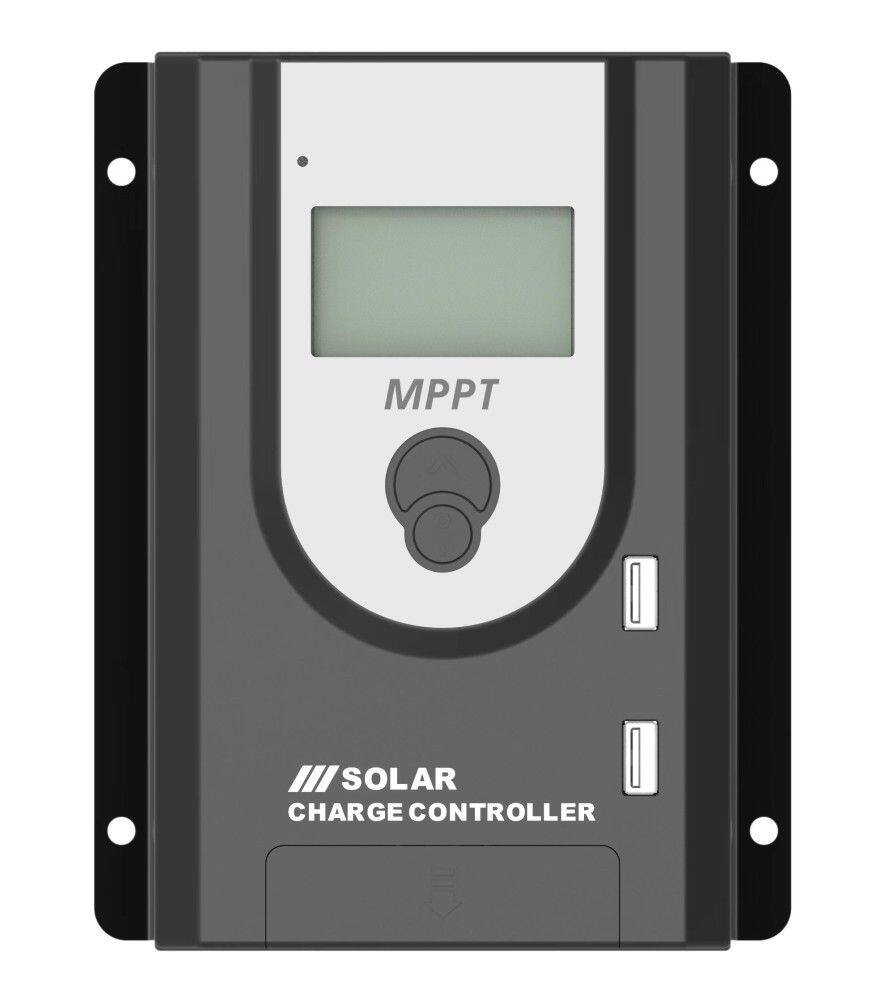

2. MPPT (Maximum Power Point Tracking) Controllers:

Function: MPPT controllers adjust the input from the solar panels to find the maximum power point, which allows them to convert excess voltage into additional current.

Advantages: More efficient, particularly in conditions where the solar panel voltage is significantly higher than the battery voltage, suitable for larger systems.

Disadvantages: More complex and expensive compared to PWM controllers.

How to choose the solar controller?

When selecting a solar charge controller, consider the following factors:

System Voltage: Ensure the controller is compatible with the voltage of your solar power system (e.g., 12V, 24V, 48V).

Current Rating: Choose a controller that can handle the maximum current your solar panels can produce.

Type of Controller: Decide between PWM and MPPT based on your system size, budget, and efficiency needs.

Additional Features: Look for features like LCD displays, remote monitoring, load control options, and temperature compensation, which can enhance the performance and usability of the controller.

In summary, a solar controller is crucial for protecting your solar power system and ensuring efficient energy management. Choosing the right type and model depends on your specific needs and system requirements.
